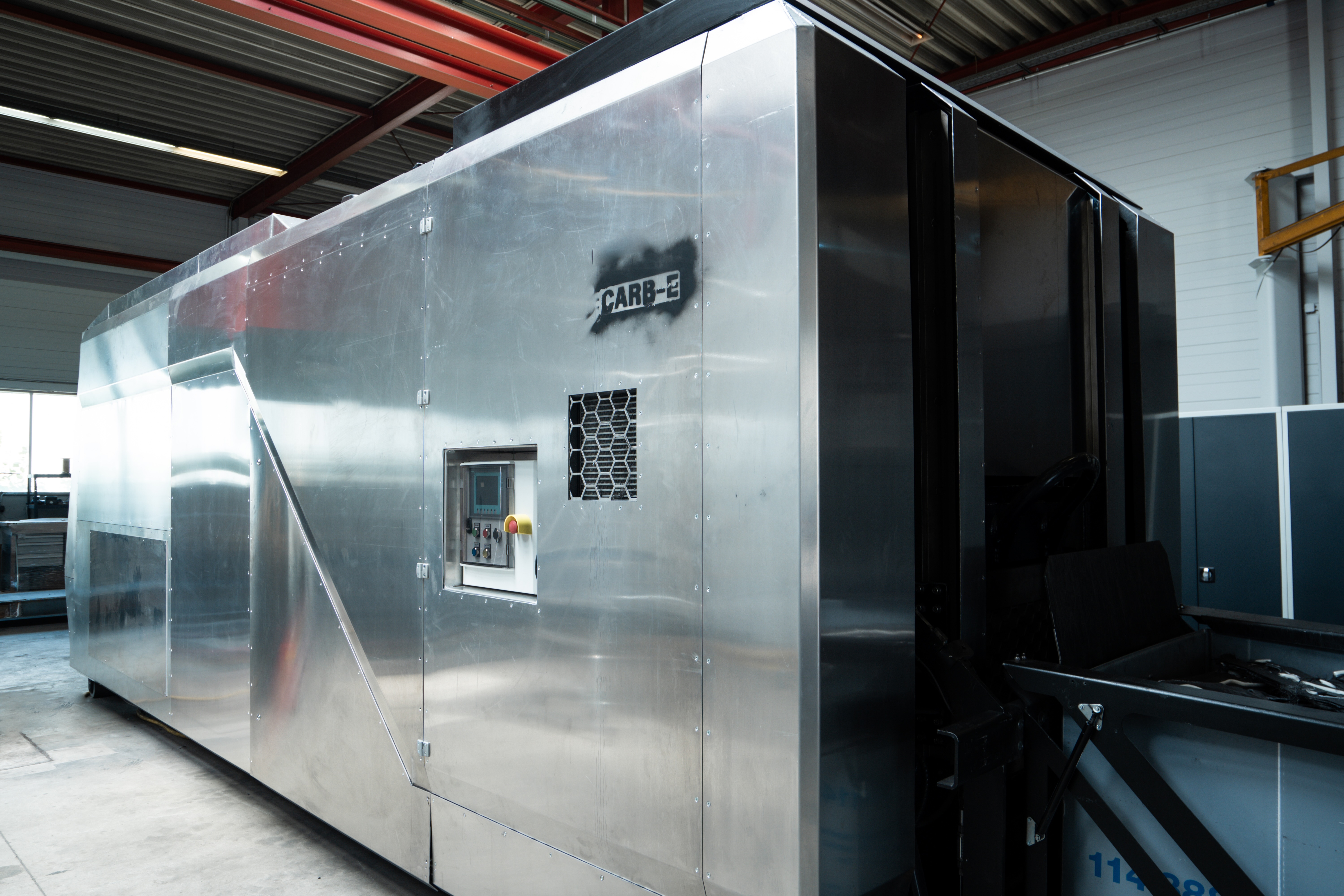

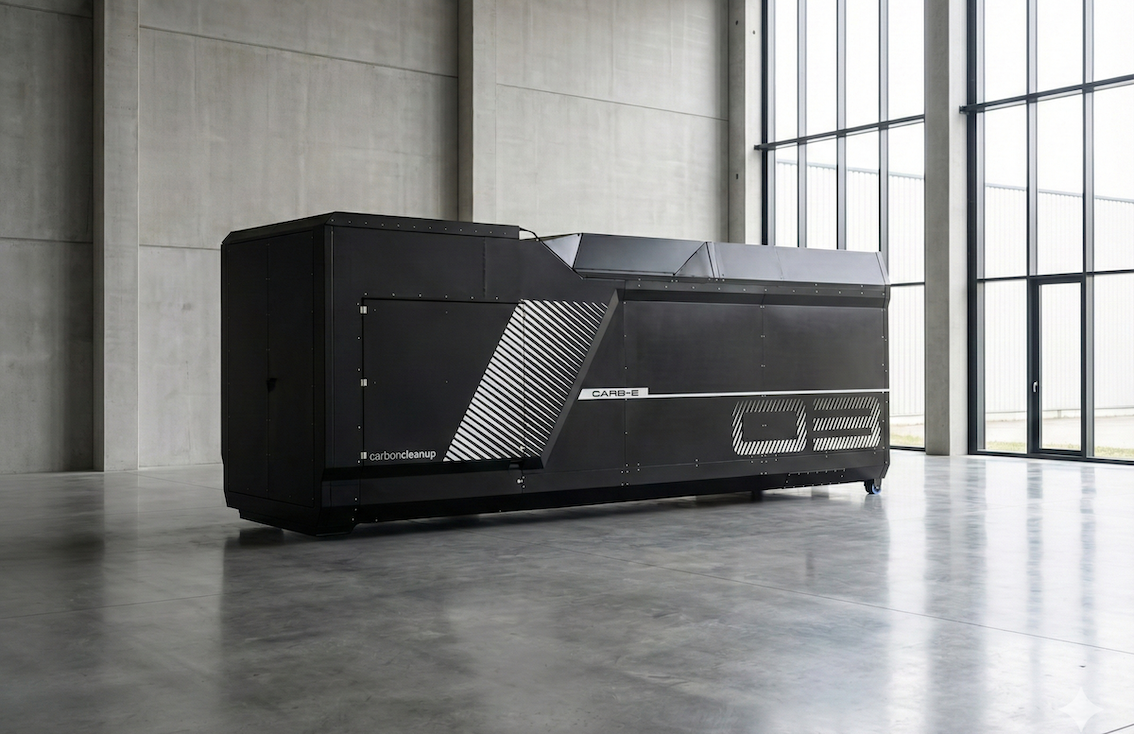

CARB-E 03 mobile composite recycling machine
CARBON EATER / THE COMPOSITE WASTE ROBOT

The go-to tool for solving composite waste.

CARB-E is Carbon Cleanup’s mobile, purpose-built mechanical processing unit for composite manufacturers and regional waste managers. It brings the recycling system to the waste and works with OCTOBUS as one connected unit from processing through to bagged output.

Siemens Industrial AI-assisted. Material-specific recipes. Repeatable, traceable output routes.

CARB-E 03 and OCTOBUS travelling together as a connected mobile system

Mobile by design

Bring the complete system to the waste.

CARB-E and OCTOBUS travel as one connected system: processing and controlled bagged output right where composite residue is generated or collected.

System overview

One connected system. A direct answer to the composite-waste problem.

CARB-E and OCTOBUS are connected by lines and operate as one on-site microfactory. Material intelligence selects the route, CARB-E processes the stream and OCTOBUS automatically fills the sorted recovered output into removable Big Bags.

01 / The processing unit

CARB-E

Purpose-built mechanical processing for carbon- and glass-fiber composites. Material-specific recipes automate the route from qualified input to a defined recovered output (up to 500 t/yr capacity per unit with 0.5 operator).

02 / The output bus

OCTOBUS

OCTOBUS automatically fills sorted material into separate removable bags with level sensing—ready for storage, transport, compounding or its next application without extra manual handling.

Illustrative reconstruction of OCTOBUS with removable collection bags beneath the machine in an industrial hall
Illustrative reconstruction of OCTOBUS based on a supplied machine photograph.
Connected output / OCTOBUS

Automated bagging, directly linked to CARB-E.

OCTOBUS completes the microfactory workflow on site. By automatically sorting and bagging the recovered fractions, it turns bulky scrap into compact, transport-ready secondary raw material.

SystemConnected to CARB-E by lines

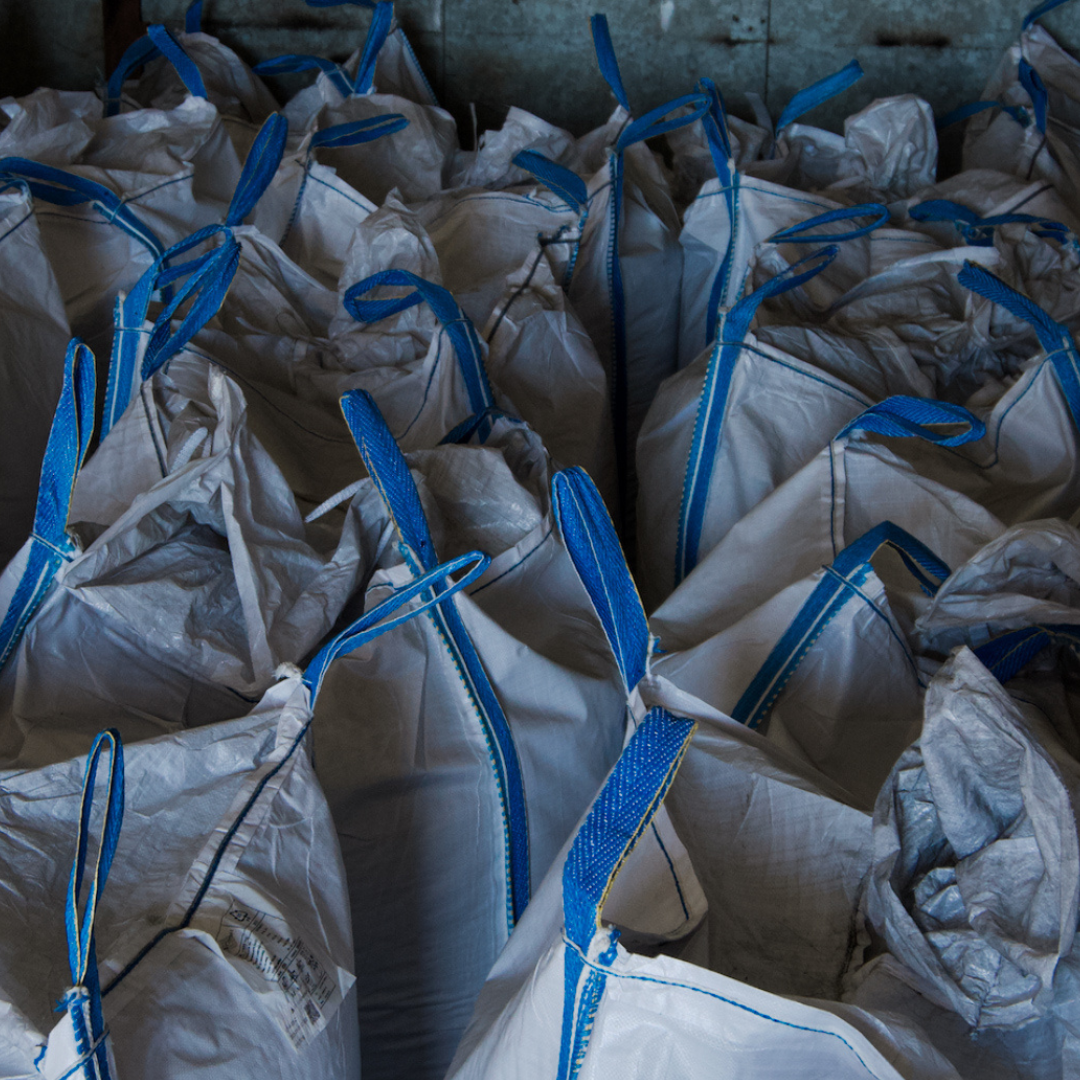

CollectionUp to 8 Big Bags with level sensing
Next stepInternal reuse, compounding or off-take
See material formats →
Deployment & asset economics

Decentralized microfactory vs. fixed recycling plant.

Traditional pyrolysis or solvolysis plants require massive capital, high energy input and years of facility permitting. CARB-E scales as a pre-certified, plug-and-play industrial asset—operated either in-house or at a regional waste manager.

  1. 01 / In-house microfactory

    For waste generators (from ~120 t/yr).

    Deploy CARB-E directly at your manufacturing site. Cut bulky scrap volume by 90% immediately, avoid shipping empty air and save disposal fees of up to €1,000/tonne while keeping secondary raw material in your loop or selling it via brokerage.

  2. 02 / Regional Cleanup Camp

    For waste managers (double revenue).

    Operate CARB-E as a regional hub near industrial clusters without lengthy fixed-plant permitting. Generate inbound revenue through gate fees per tonne of accepted composite waste and outbound revenue from selling qualified carbon feedstock.

  3. 03 / Regional drop-off

    For smaller composite volumes.

    Companies whose annual scrap volume does not yet justify a dedicated 500 t/yr machine can deliver their composite residues to a regional waste-management partner operating a CARB-E Cleanup Camp nearby.

  4. 04 / Fast permitting & low CAPEX

    Certified mobile asset (§ 52 AWG).

    Instead of multi-year environmental permits for stationary chemical or thermal plants, CARB-E arrives as a CE-compliant, explosion-proof and dust-free mechanical unit with pre-approved mobile waste-treatment certification.

Technology landscape & USP

Why mobile and mechanical beats thermal and chemical plants.

Conventional composite recycling struggles to scale because high-temperature or chemical processes consume too much energy and lock operators into fixed locations with high transport costs.

Stationary pyrolysis & solvolysis

Fixed plants, high energy & no scale.

Bound to a single site and limited local waste streams. High thermal or chemical energy input drives up the CO₂ footprint, while bulky composite transport erodes the business case.

Mobile thermal approaches

Mobile, but energy- and carbon-heavy.

While mobile thermal systems reduce waste shipping, high energy demand and emissions during processing make the recovered output expensive and unattractive for decarbonizing supply chains.

CARB-E / Mechanical + Mobile + Smart

High energy efficiency, lowest CO₂.

Zero water, zero process heat and zero chemicals (~0.036 kg CO₂eq/kg; -98% vs. virgin CF). Instant 90% volume reduction on site, End-of-Waste (2008/98/EC) compliant and AI-assisted material traceability.

Step-by-step material flow

Controlled from loading to bagged output.

Inside the hall, CARB-E and OCTOBUS run an automated 6-step sequence with a defined recipe and batch record for every qualified material stream.

CARB-E and OCTOBUS operating together in a clean industrial hall, with the green processing-status light visible below the machine
System running Green status light indicates that material processing is in progress.Visual treatment based on a supplied CARB-E/OCTOBUS operating still.
  1. 01 / Load

    Contain the intake.

    The loading sequence opens the access door automatically while extraction is active, supporting controlled handling of incoming composite material.

  2. 02 / Process

    Apply the recipe.

    CARB-E mechanically prepares qualified input using the selected, material-specific process route.

  3. 03 / Sort

    Build the target fraction.

    Physical sorting separates the processed material into defined fractions for the intended fiber length, distribution and quality target.

  4. 04 / Filter

    Manage process dust.

    A three-stage filtration system is designed to capture process dust within the system during operation.

  5. 05 / Record

    Keep the batch traceable.

    Siemens control and Industrial AI-assisted material intelligence link the qualified input, recipe and output route in a documented batch record.

  6. 06 / Fill

    OCTOBUS completes the hand-off.

    Level sensors manage automatic Big Bag filling. A configured station can fill up to eight bags and notify the operator when a bag change is required.

Pre-authorized & compliance-ready.CARB-E is CE-compliant, certified as a mobile waste treatment plant (§ 52 AWG 2002) and designed to fulfill EU End-of-Waste criteria (Directive 2008/98/EC). Its purely mechanical process requires zero water, zero process heat and zero chemicals (~0.036 kg CO₂eq/kg; up to 500 t/yr capacity per unit with 0.5 operator).
Engineering input

Bring the material data before selecting the machine settings.

For a useful first assessment, provide the fiber and matrix system, a representative sample, approximate annual quantity, part or scrap geometry, and any known contaminants. Carbon Cleanup can then define trials, assess the recovered fraction and discuss the intended application or regional Cleanup Camp setup.

Project-specific qualification: The accepted input, process window, granulate properties and suitability for a subsequent product require testing. No universal output specification is implied.

Check CARB-E fit →
Start with a sample

Find the right route for your composite residue.

Send the material type, expected volume and whether you want to evaluate an in-house unit, a Cleanup Camp or regional drop-off.

Discuss your material →
